•Corrosion-resistant, reinforced thermoplastic construction
•Bottom suction design filters debris and removes water down to 1/4”
•1” minimum water level for the pump to prime and operate
•1” NPT discharge with garden hose adapter included
•Oil-filled motor for continuous lubrication
•Handle designed for easy portability

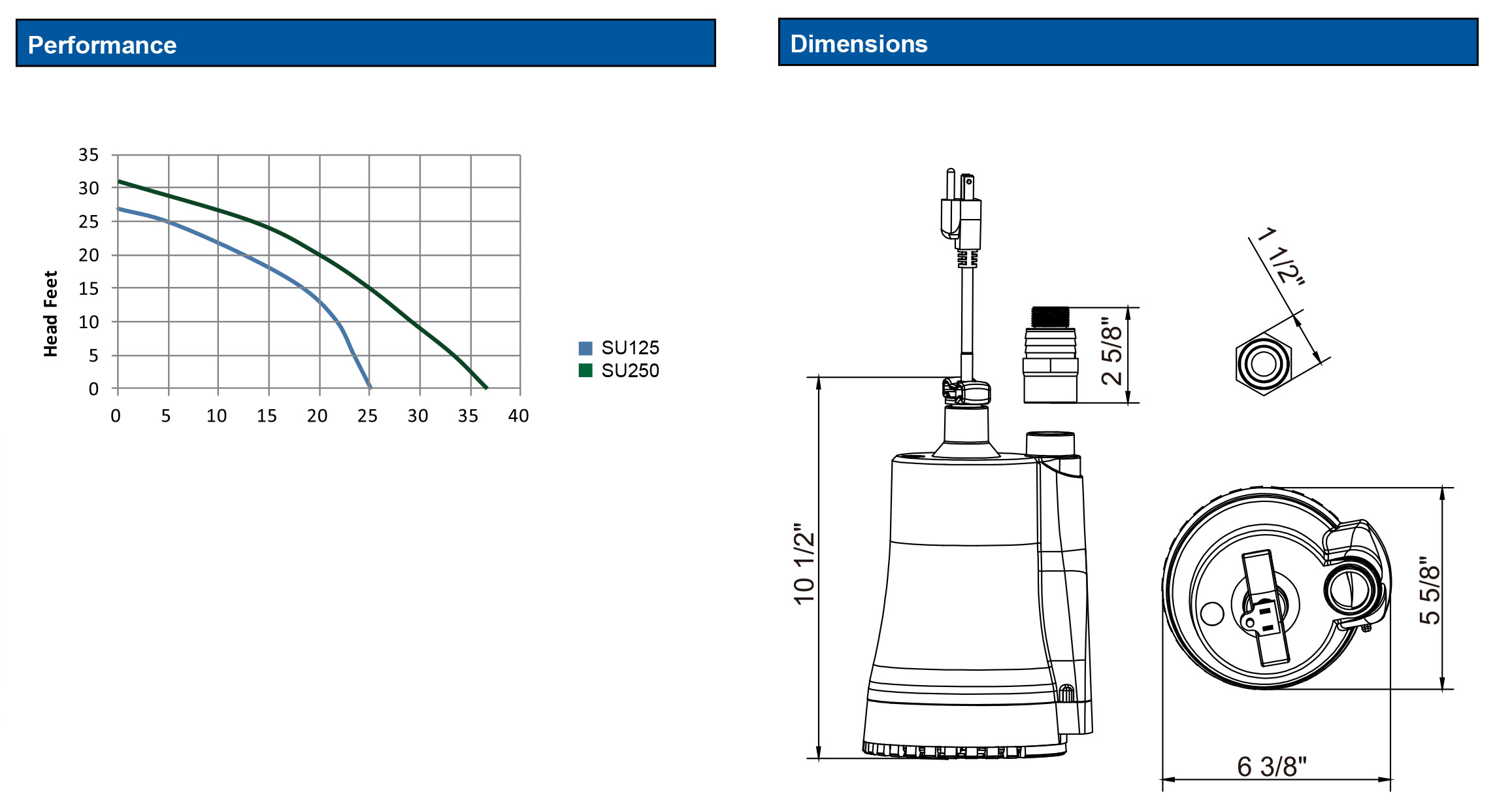

| Discharge Flow (GPH) | |||||||
Model No. | HP | 0’ | 5’ | 10’ | 15’ | 20’ | 25’ | Max. lift |
SU125 | 1/6 | 1500 | 1400 | 1300 | 1100 | 750 | 300 | 27’ |
SU250 | 1/3 | 2200 | 2000 | 1750 | 1500 | 1200 | 800 | 31’ |
Application | |
Submersible utility pump for general water transfer | |
Voltage | 115 |
Hertz | 60 |
Phase | Single |
RPM | 3450RPM |
Motor type | Permanent Split Capacitor (PSC) |
Insulation | Class B |
Circuit requirments | 15 AMP |
Duty rating | Continuous* |
Shaft seal | Lip seal |
Motor Shaft | Stainless steel |
Upper motor bearing | Ball bearing |
Lower motor bearing | Ball bearing |
Cooling | Oil cooled |
Motor protection | Auto reset thermal overload protector |
*For continuous,the water depth must be at least 6”to prevent the motor from overheating | |
Pump Specifications | |
Discharge size | 1" MNPT & garden hose adapter included |
Cord Length | 10' |
Cord type | SJTW 18AWG/3C, UL list |
Pump Housing | Reinforced thermoplastic |
Pump Base | Reinforced thermoplastic |
Impeller material | Reinforced thermoplastic |
Gasket | Rubber |
Solids handling | 1/8" spherical |
Liquid temp.range | 32°-95°F |
Operation | Non-automatic |
Fasteners | Stainless steel |
Model | HP | Amps | Discharge Height | 0’ | 5’ | 10’ | 15’ | 20’ | 25’ |
SU125 | 1/6 | 2.2 | GPM | 25 | 23 | 22 | 18 | 13 | 5 |
|
|
| GPH | 1500 | 1400 | 1300 | 1100 | 750 | 300 |
SU250 | 1/3 | 3 | GPM | 37 | 33 | 29 | 25 | 20 | 13 |
|
|
| GPH | 2200 | 2000 | 1750 | 1500 | 1200 | 800 |
