• Automatically turns ON when water reaches 1-1/4”, and OFF at ¼” water level
• Energy-efficient PSC motor with thermal overload protection
• Water-cooled, oil free motor design is safe to use around fish and plants
• Corrosion-resistant thermoplastic construction
• Use to drain water from window wells, flooded basements, water gardens, stock tanks, flat roofs, pool covers and more
• Flexible rubber impeller helps prevent clogging and handles up to 1/8” spherical solids
• 1” NPT discharge with garden hose adapter included
| Discharge Flow (GPH) | |||||||
Model No. | HP | 0’ | 5’ | 10’ | 15’ | 20’ | 25’ | Max. lift |
PSUT03308 | 1/4 | 1800 | 1550 | 1320 | 1080 | 780 | 360 | 28’ |
Application | |
Automatic Utility Pump for general water transfer | |
Voltage | 115 |
Hertz | 60 |
Phase | Single |
RPM | 3450RPM |
Motor type | Permanent Split Capacitor (PSC) |
Insulation | Class B |
Circuit requirments | 15 AMP |
Duty rating | Continuous* |
Shaft seal | Lip seal |
Motor Shaft | Stainless steel |
Upper motor bearing | Ball bearing |
Lower motor bearing | Ball bearing |
Cooling | Water cooled |
Motor protection | Auto reset thermal overload protector |
*For continuous,the water depth must be at least 6” to prevent the motor from overheating | |
Pump Specifications | |
Discharge size | 1" MNPT & garden hose adapter included |
Cord Length | 10' |
Cord type | SJTW 18AWG/3C, UL list |
Pump Housing | Reinforced thermoplastic |
Pump Base | Reinforced thermoplastic |
Impeller material | Rubber |
Gasket | Rubber |
Solids handling | 1/8" spherical |
Liquid temp.range | 32°-95°F |
Operation | Automatic |
Fasteners | Stainless steel |
Maximum flow rate | 30 GPM |
Maximum head | 28 ft |

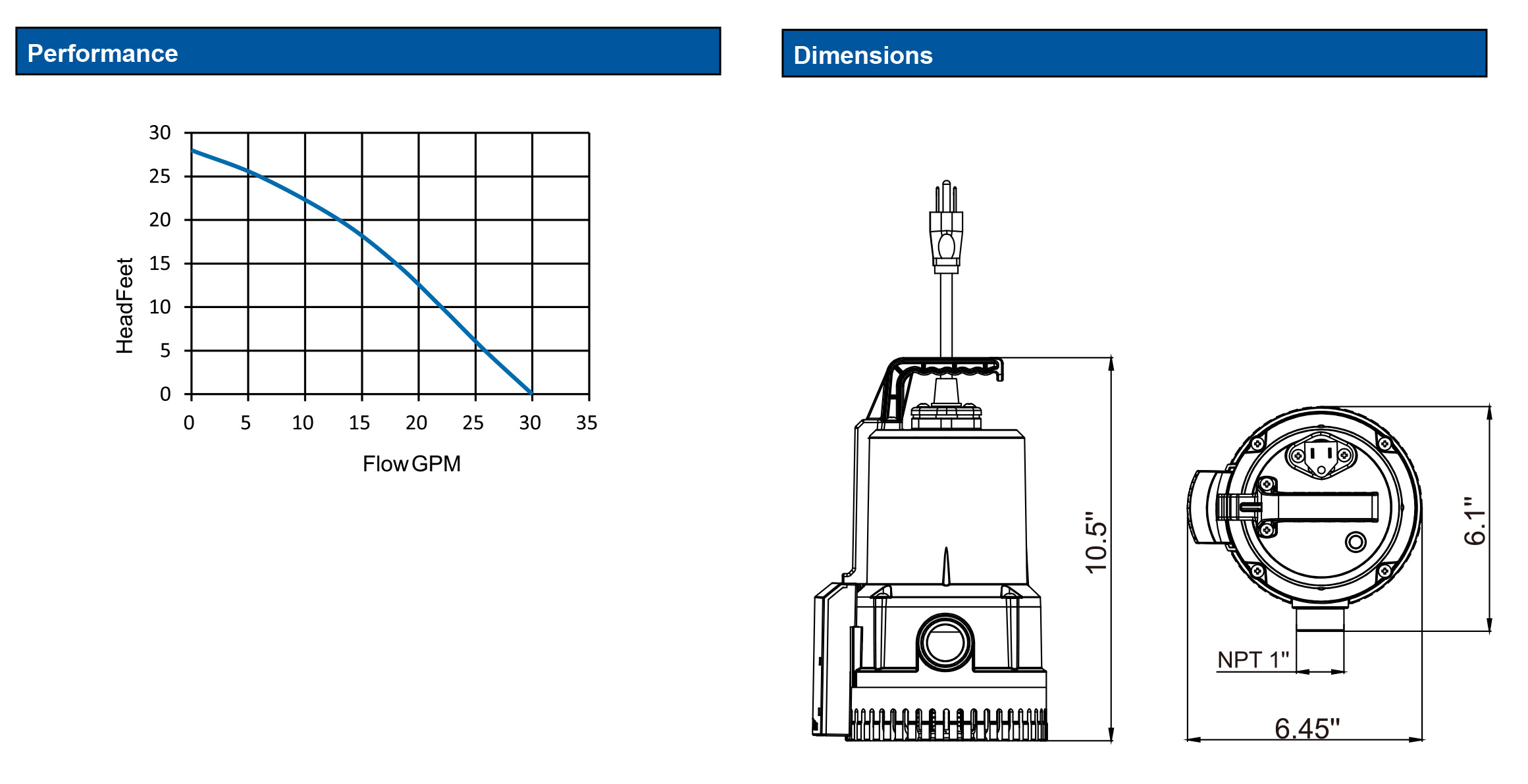

Model | HP | Amps | Discharge Height(ft) | 0 | 5 | 10 | 15 | 20 | 25 | 28 |
PSUT03308 | 1/4 | 2A | GPM | 30 | 26 | 22 | 18 | 13 | 6 | 0 |
|
|
| GPH | 1800 | 1550 | 1320 | 1080 | 780 | 360 | 0 |
