Features:
•Rugged cast iron pump housing, pump base and motor housing.
•Energy-efficient, PSC motor with thermal overloadprotection.
•Oil-filled motor for maximum heat dissipation andpermanent lubrication.
•Ball bearings for quiet operation.
•Non clog vortex impeller handles up to 1/2” spherical solids
•Piggyback Tethered Float Switch for automatic or manual operation.
•Operates up to 130°F in water transfer or dewatering applications.
•1-1/2” NPT Discharge with 20’ power cord.
Typical Applications
•Light Commercial dewatering
•Water transfer
•STEP or onsite applications•Low pressure pipe (LPP)
|

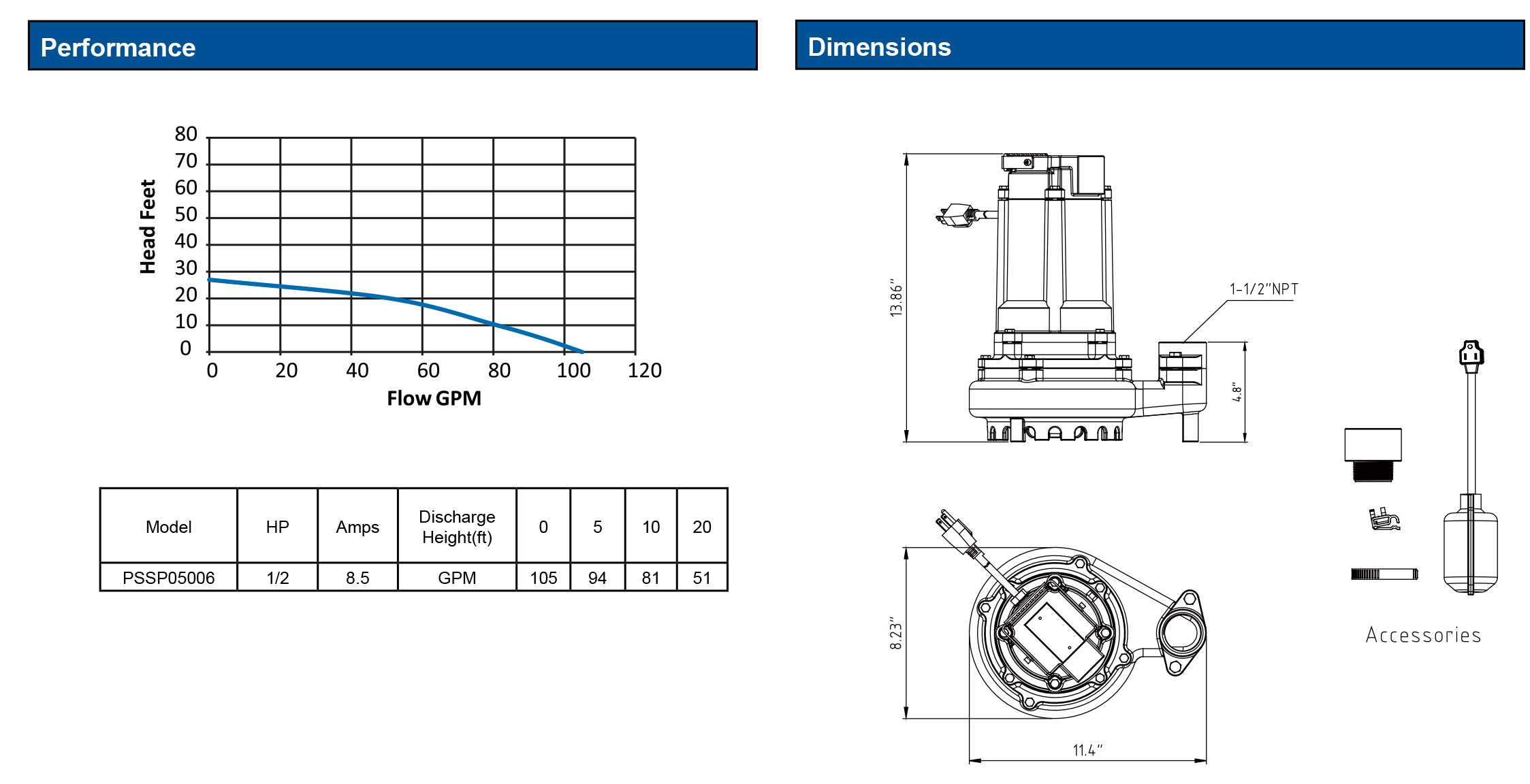

| Discharge Flow(GPM) | ||||
Model No. | HP | 0’ | 5’ | 10’ | 20’ | Max. lift |
PSSP05006 | 1/2 | 105 | 94 | 81 | 51 | 27’ |
Application | |
| |
Voltage | 115 |
Hertz | 60 |
Phase | Single |
RPM | 1725 RPM |
Motor type | Permanent Split Capacitor(PSC) |
Insulation | Class B |
Circuit requirments | 20 AMP |
Duty rating | Continuous* |
Shaft seal | Mechanical seal Carbon/Sic,NBR |
Motor Shaft | Stainless steel |
Upper motor bearing | Ball bearing |
Lower motor bearing | Ball bearing |
Cooling | oil cooled |
Motor protection | Auto reset thermal overload protector |
Pump Specifications | |
Discharge size | 1-1/2" NPT |
Pump Housing | Cast iron |
Pump Base | Cast iron |
Motor Housing | Cast iron |
Impeller material | Thermoplastic, non-clog vortex |
Liquid temp.range | 32-130°F |
Fasteners | Steel |
Solids handling | 1/2" spherical solids |
Max Head | 27’ |
Cord Length | 20 FT cord |
Cord type | SJOW 16AWG/3C, UL list |
Automatic Switch Specifications | |
Type | Wide Angle Tethered |
Material | Reinforced thermoplastic |
Cord Length | 20 FT cord |
Cord type | SJOW 16AWG/3C, UL list |
