Features:
• Rugged cast iron pump housing, pump base, motor housing and impeller
• Non-clog vortex impeller handles up to 3/4” solids
• Energy-efficient, automatic reset thermal overload protection
• Ball bearings for quiet operation
• Oil-filled motor for maximum heat dissipation and permanent lubrication
• Ceramics & Graphite mechanical shaft seals
• 1-1/2” NPT discharge (including 2” flange) with 20’ power cord
• Operates up to 130°F in effluent transfer or dewatering applications
Typical Applications:
• Onsite or septic tank applications
• Enhanced flow STEP systems
• Light Commercial dewatering
• Sump / Dewatering
• Low pressure pipe (LPP)

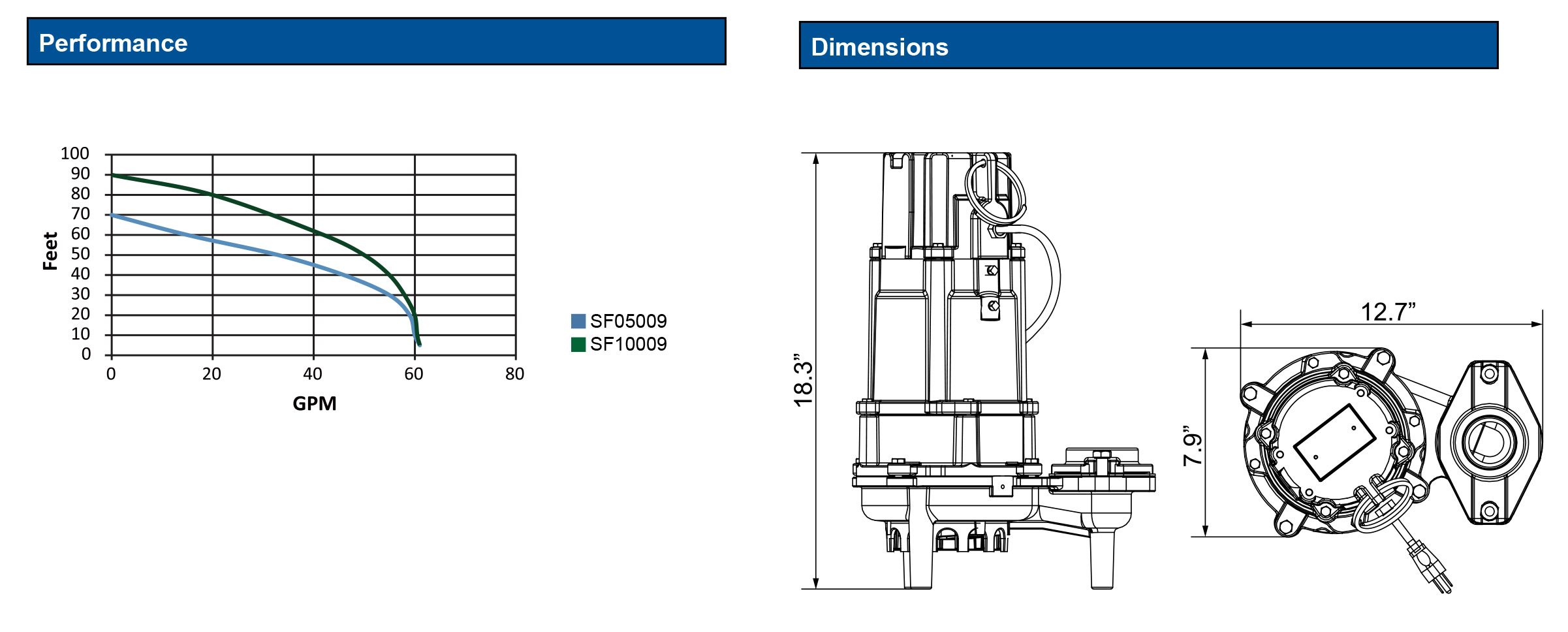

| Discharge Flow (GPM) | ||||||||||||
Model No. | HP | Voltage | Amps | 0’ | 10’ | 20’ | 30’ | 40’ | 50’ | 60’ | 70’ | 80’ | Max.lift |
SF05009 | 1/2 | 115 | 15 | 61.7 | 60 | 59 | 55 | 46 | 33 | 15 | / | / | 70’ |
SF10009 | 1 | 230 | 10.5 A | 61.7 | 61 | 60 | 58 | 55 | 50 | 42 | 30 | 20 | 90’ |
Application | |
| |
Hertz | 60 |
Phase | Single |
RPM | 3450RPM |
Insulation | Class B |
Circuit requirments | 20 AMP |
Duty rating | Continuous* |
Shaft seal | Ceramics & Graphite Mechanical seal |
Motor Shaft | Stainless steel |
Upper motor bearing | Ball bearing |
Lower motor bearing | Ball bearing |
Cooling | oil cooled |
Motor protection | Auto reset thermal overload protector |
Pump Specifications | |
Discharge size | 1-1/2" NPT (including 2" flange) |
Pump Housing | Cast iron |
Pump Base | Cast iron |
Impeller material | Cast iron |
Gasket | Nitrile |
Liquid temp.range | 32-130°F |
Fasteners | Stainless steel |
Solids handling | 3/4" spherical solids |
Cord Length | 20 FT cord |
Cord type | Model SF05009: SOOW 14AW- |
Model | HP | Volt- age | Amps | Head （ft） | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
SF05009 | 1/2 | 115 | 15 | GPM | 61.7 | 60 | 59 | 55 | 46 | 33 | 15 | 0 | / |
SF10009 | 1 | 230 | 10.5 | GPM | 61.7 | 61 | 60 | 58 | 55 | 50 | 42 | 30 | 20 |
