Features:
• Rugged cast iron pump housing, pump base, motor housing and impeller
• Non-clog vortex impeller handles up to 2” solids•Energy-efficient, automatic reset thermal overloadprotection
• Ball bearings for quiet operation
• Oil-filled motor for maximum heat dissipation andpermanent lubrication•Ceramics & Graphite mechanical shaft seals
• 2” NPT discharge with 20’ power cord•Operates up to 130°F in effluent transfer ordewatering applications
Typical Applications:
• Commercial Sewage & Dewatering
• Transfer effluent or wastewater
• Lift Stations
• Typical Residential, Multi-family

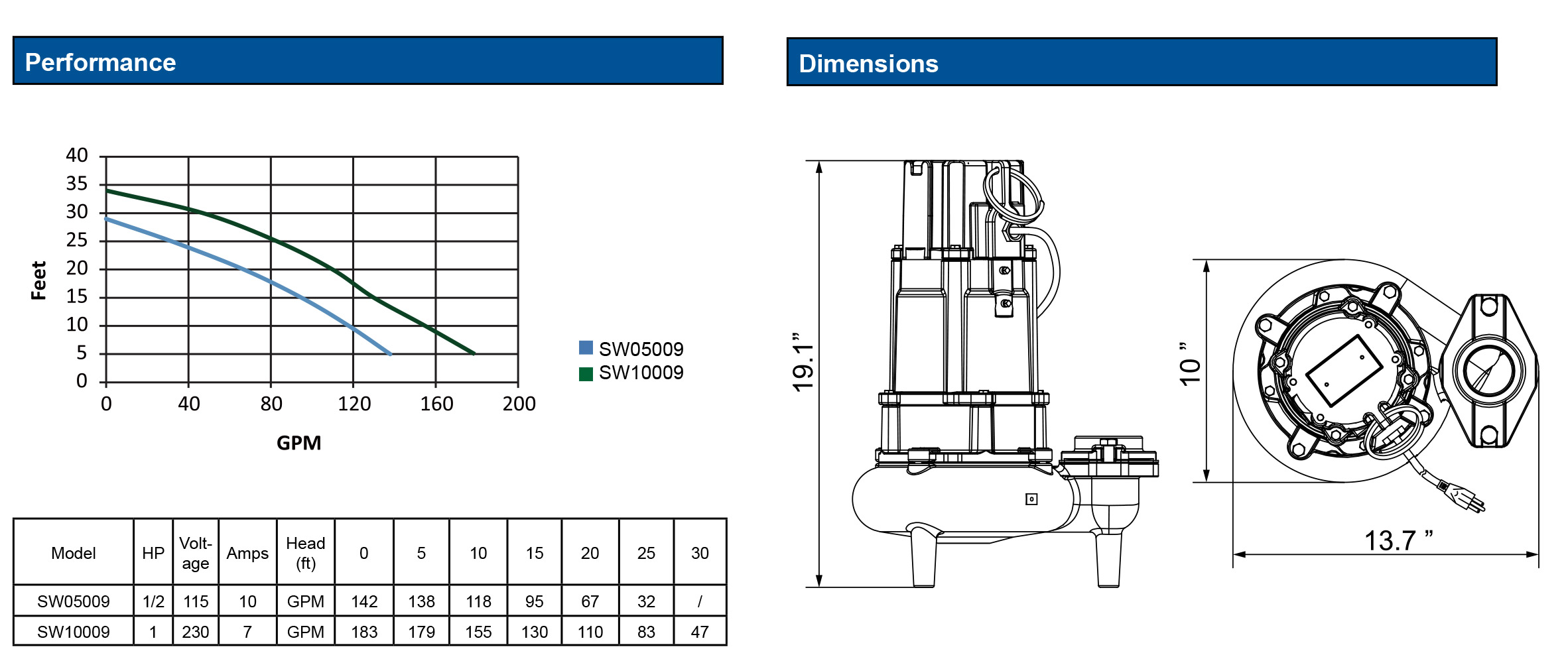

| Discharge Flow (GPM) | ||||||||||
Model No. | HP | Voltage | Amps | 0’ | 5’ | 10’ | 15’ | 20’ | 25’ | 30’ | Max.lift |
SW05009 | 1/2 | 115 | 10 | 142 | 138 | 118 | 95 | 67 | 32 | / | 29’ |
SW10009 | 1 | 230 | 7 | 183 | 179 | 155 | 130 | 110 | 83 | 47 | 34’ |
Application | |
| |
Hertz | 60 |
Phase | Single |
RPM | 1750RPM |
Insulation | Class B |
Circuit requirments | 20 AMP |
Duty rating | Continuous* |
Shaft seal | Ceramics & Graphite Mechanical seal |
Motor Shaft | Stainless steel |
Upper motor bearing | Ball bearing |
Lower motor bearing | Ball bearing |
Cooling | oil cooled |
Motor protection | Auto reset thermal overload protector |
Pump Specifications | |
Discharge size | 2” NPT |
Pump Housing | Cast iron |
Pump Base | Cast iron |
Impeller material | Cast iron |
Gasket | Nitrile |
Liquid temp.range | 32-130°F |
Fasteners | Stainless steel |
Solids handling | 2" spherical solids |
Cord Length | 20 FT cord |
Cord type | Model SW05009: SOOW 14AW- |
