Features:
• Delivers up to 80% energy savings compared to single speed pool pumps
• Permanent magnet, 230V totally enclosed fan- cooled (TEFC) motor provides ultra-quiet operation, reliability and maximum energy efficiency
• Control Panel displays current operation and programs up to 4 timed operating modes per day
• Durable Polymer construction resists corrosion
• Includes two 1-1/2” Union Connections for quick and easy installation and servicing
• Features an industrial size strainer basket to collect debris, lengthens time between cleanings
• Viton pump seal provides resistance against chemical imbalances in the water
• 1-1/2” Suction and Discharge size

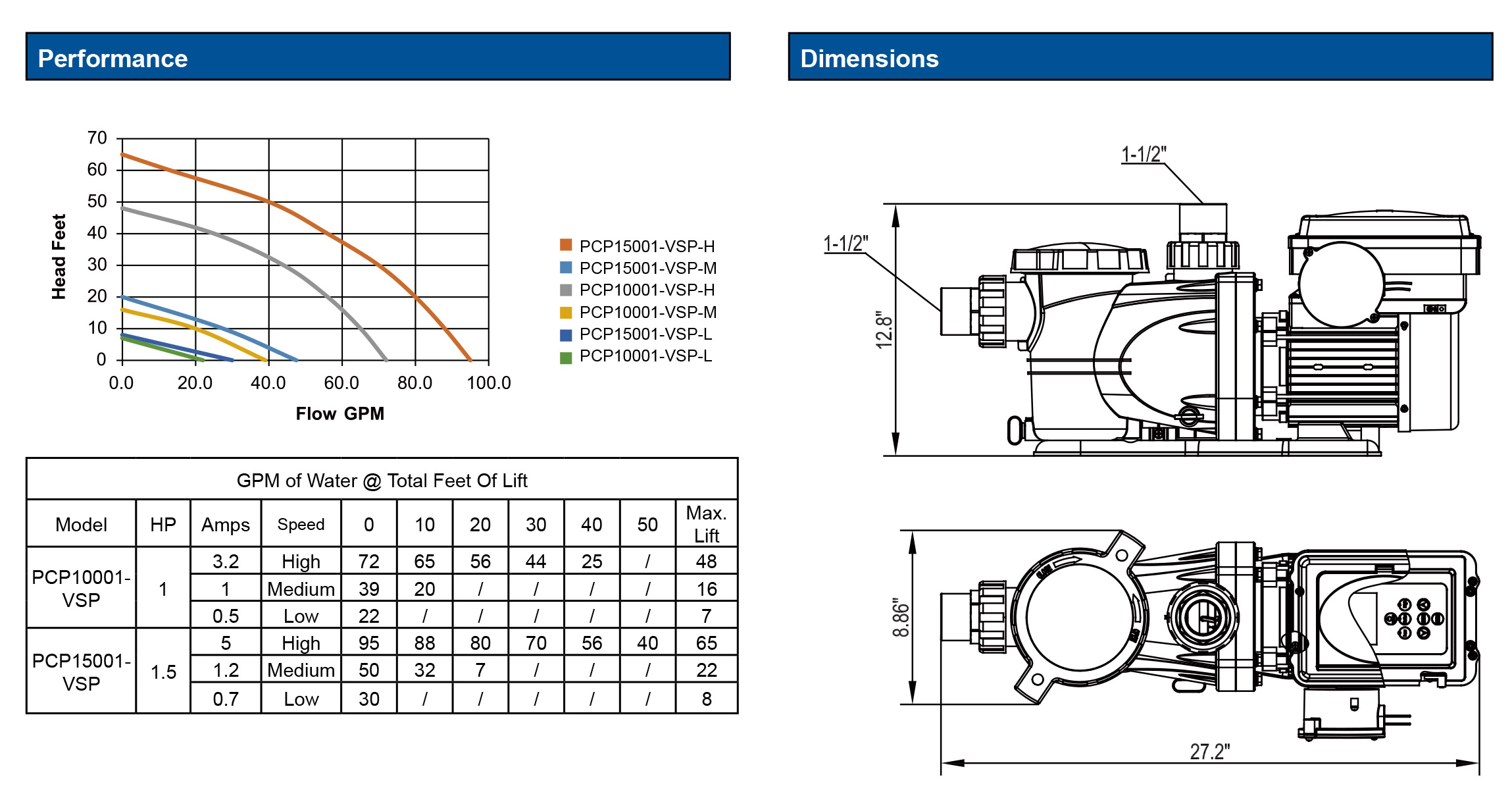

GPM of Water Total Feet Of Lift (high speed) | Max. Pressure | Total HP | Rated HP | Service Factor | Union Connectors | ||||||
Model No. | HP | 0’ | 10’ | 20’ | 30’ | 40’ | |||||
PCP10001-VSP | 1 | 72 | 65 | 56 | 44 | 25 | 21 PSI | 1 | 1 | 1 | 1-1/2 |
PCP15001-VSP | 1-1/2 | 95 | 88 | 80 | 70 | 56 | 28 PSI | 1-1/2 | 1-1/2 | 1 | 1-1/2 |
GPM of Water Total Feet Of Lift (Medium speed) |
| ||||||||||
PCP10001-VSP | 1 | 39 | 20 | / | / | / | 7 PSI | 1/4 | 1/4 | 1 | 1-1/2 |
PCP15001-VSP | 1-1/2 | 50 | 32 | 7 | / | / | 9 PSI | 3/8 | 3/8 | 1 | 1-1/2 |
GPM of Water Total Feet Of Lift (low speed) |
| ||||||||||
PCP10001-VSP | 1 | 22 | / | / | / | / | 3 PSI | 1/16 | 1/16 | 1 | 1-1/2 |
PCP15001-VSP | 1-1/2 | 30 | / | / | / | / | 3 PSI | 1/10 | 1/10 | 1 | 1-1/2 |
Application | |
Ideal for recycling and filtering the water in the pool | |
Voltage | 230 |
Hertz | 60 |
Phase | Single |
RPM | 600-3500RPM |
Motor type | PMSM |
Insulation | Class B |
Circuit requirments | 15 AMP |
Duty rating | Continuous* |
Shaft seal | Mechanical seal |
Motor Shaft | Stainless steel |
Upper motor bearing | Ball bearing |
Lower motor bearing | Ball bearing |
Cooling | Fan cooled |
Motor protection | Auto reset thermal overload protector |
CEC/DOE Compliant | 1 HP, 1.5 HP |
CSA listed | Yes |
THP-Total Horsepower | 1 HP, 1.5 HP |
Motor Enclosure | TEFC |
Pump Specifications | |
Discharge size | 1-1/2" |
Suction size | 1-1/2" |
Pump Housing | Reinforced thermoplastic |
Pump Base | Reinforced thermoplastic |
Diffuser | Reinforced thermoplastic |
Impeller material | Reinforced thermoplastic |
Gasket | Rubber |
Solids handling | 0" spherical |
Liquid temp.range | 32-100°F |
Fasteners | Steel |
WEF - Weighted Energy Factor | 7.5 for 1 HP |
Seal | Viton |
Union Connections | 2 kits, 1-1/2" Slip |
