Features:
• Delivers up to 80% energy savings compared to single speed pool pumps
• Permanent magnet, 230V totally enclosed fan- cooled (TEFC) motor provides ultra-quiet operation, reliability and maximum energy efficiency
• Control Panel displays current operation and programs up to 4 timed operating modes per day
• Durable Polymer construction resists corrosion
• Includes two 2 in.PVC MPT*S male Adapter for quick and easy installation and servicing
• Features an industrial size strainer basket to collect debris, lengthens time between cleanings
• Viton pump seal provides resistance against chemical imbalances in the water
• 2” NPT Suction and Discharge size

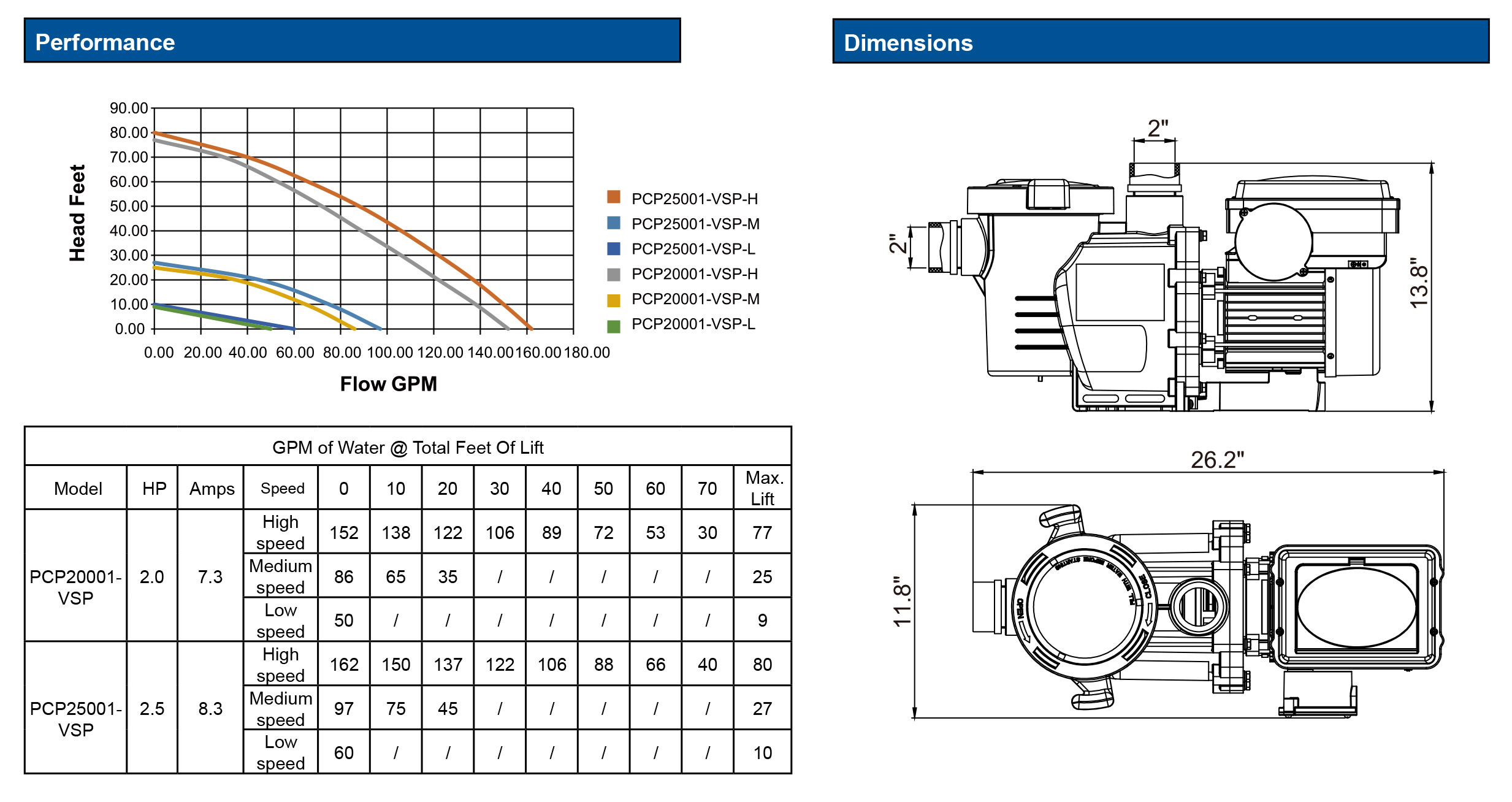

GPM of Water @ Total Feet of Lift | Max. Pressure | ||||||||||
Model No. | HP | RPM | 0 ft | 10 ft. | 20 ft. | 30 ft. | 40 ft. | 50 ft. | 60 ft. | 70 ft. | |
PCP20001-VSP |
2 | 3500 | 152 | 138 | 122 | 106 | 89 | 72 | 53 | 30 | 77ft. |
2000 | 86 | 65 | 35 | / | / | / | / | / | 25ft. | ||
1200 | 50 | / | / | / | / | / | / | / | 9ft. | ||
PCP25001-VSP |
2-1/2 | 3500 | 162 | 150 | 137 | 122 | 106 | 88 | 66 | 40 | 80ft. |
2000 | 97 | 75 | 45 | / | / | / | / | / | 27ft. | ||
1200 | 60 | / | / | / | / | / | / | / | 10ft. | ||
Application | |
Ideal for recycling and filtering the water in the pool | |
Voltage | 230 |
Hertz | 60 |
Phase | Single |
RPM | 600-3500RPM |
Motor type | PMSM |
Insulation | Class B |
Circuit requirments | 15 AMP |
Duty rating | Continuous* |
Shaft seal | Mechanical seal |
Motor Shaft | Stainless steel |
Upper motor bearing | Ball bearing |
Lower motor bearing | Ball bearing |
Cooling | Fan cooled |
Motor protection | Auto reset thermal overload protector |
CEC/DOE Compliant | 2HP, 2.5HP |
CSA listed | Yes |
THP-Total Horsepower | 2HP, 2.5HP |
Motor Enclosure | TEFC |
Pump Specifications | |
Discharge size | 2" |
Suction size | 2" |
Pump Housing | Reinforced thermoplastic |
Pump Base | Reinforced thermoplastic |
Diffuser | Reinforced thermoplastic |
Impeller material | Reinforced thermoplastic |
Gasket | Rubber |
Solids handling | 0" spherical |
Liquid temp.range | 32-100°F |
Fasteners | Steel |
WEF - Weighted Energy Factor | 7.5 for 1 HP |
Seal | Viton |
Union Connections | 2 kits, 12"FNPT*2" Slip |
